Liquid Withdrawal Device, LWD

item#: P2-2018904 Category

$1,135.00

29 in stock

Product Description

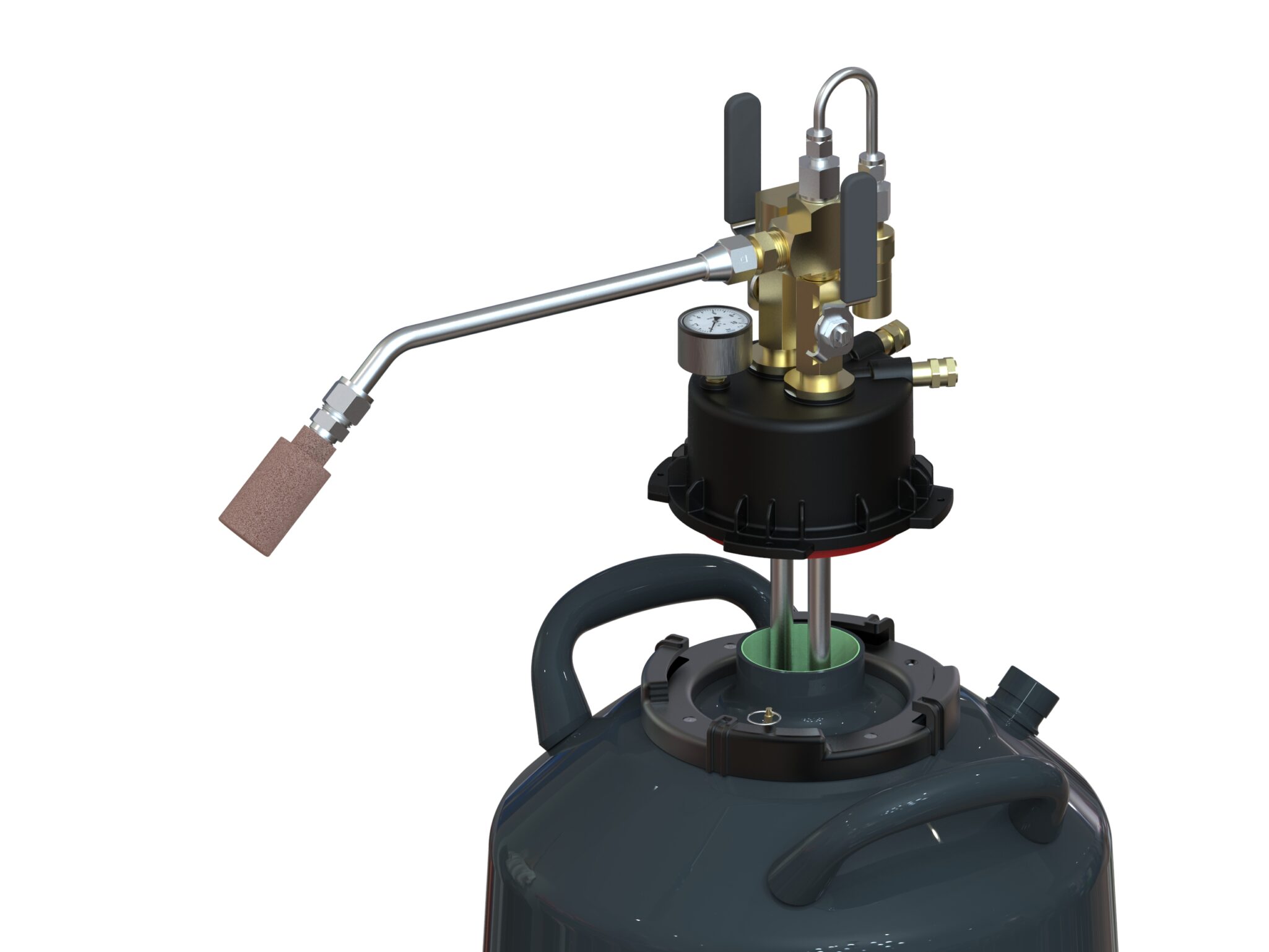

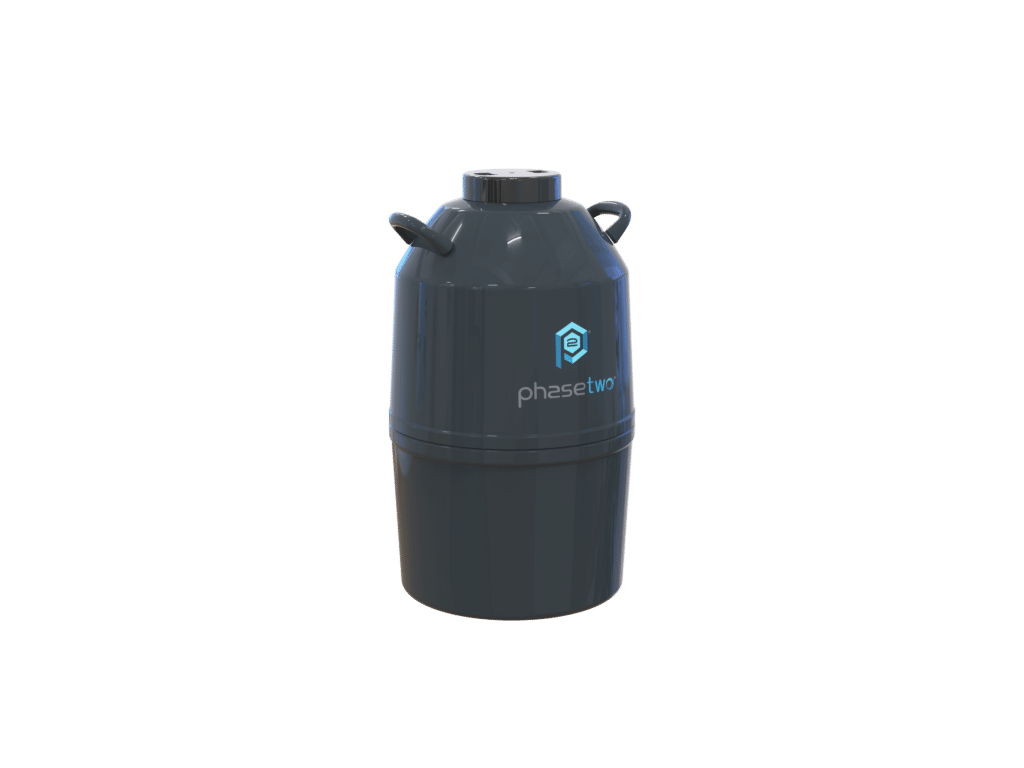

phasetwoโ€™s Liquid Withdrawal Device LWD is used to conveniently transfer liquid nitrogen from the D25, D35, and D50 dewars into smaller vessels and receptacles. The LWD locks into the quick assemble/disassemble flange that is attached to the neck of these dewars; the spring plunger attached to the flange locks the device onto the dewar. In a filled dewar, liquid nitrogen evaporation will maintain sufficient pressure to dispense liquid from the LWD.

Height 38"
Height 965.2mm
Diameter 6.6", 167.64mm
Weight 10 lbs
Shipping Height 32
Shipping Length 8
Shipping Width 8
